HVLS FAN &
Speed Controller

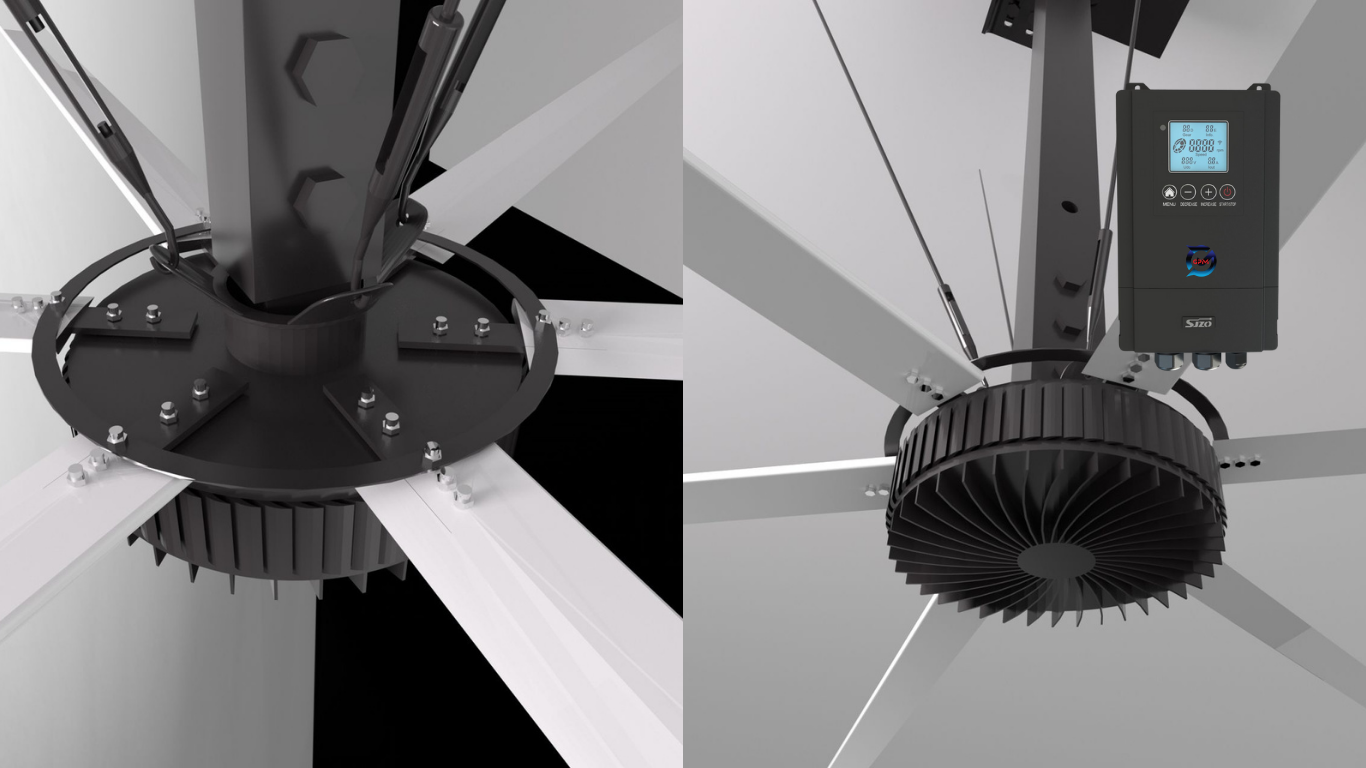

Lightweight and high-strength integrated molding top cover, the strength is 1.6 times that of the ordinary cover, making the motor more stable.
Double stronger bearing, make motor service life longer, more stable, more safe.
Wooden box package with iron seal.
Carton package with foam and film
Exclusively designed fan Angle to produce more air under the same power.

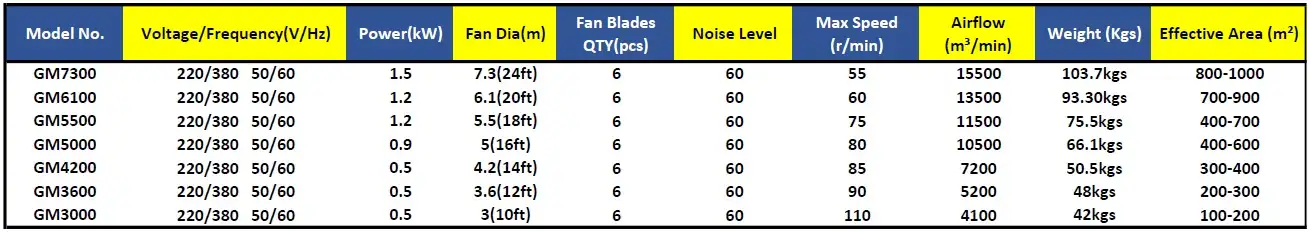

TECHNICAL PARAMETER
| Model No. | Voltage/Frequency(V/Hz) | Power(kW) | Fan Dia(m) | Fan Blades QTY.(pcs) | Max Speed (r/min) | Airflow(m³/min) | Effective Area(㎡) |
| GM7300 | 220/380 50/60 | 1.5 | 7.3(24ft) | 6 | 55 | 15500 | 800-1000 |
| GM6100 | 220/380 50/60 | 1.2 | 6.1(20ft) | 6 | 60 | 13500 | 700-900 |
| GM5500 | 220/380 50/60 | 1.2 | 5.5(18ft) | 6 | 75 | 11500 | 400-700 |
| GM5000 | 220/380 50/60 | 0.9 | 5(16ft) | 6 | 80 | 10500 | 400-600 |
| GM4200 | 220/380 50/60 | 0.5 | 4.2(14ft) | 6 | 85 | 7200 | 300-400 |
| GM3600 | 220/380 50/60 | 0.5 | 3.6(12ft) | 6 | 90 | 5200 | 200-300 |
| GM3000 | 220/380 50/60 | 0.5 | 3(10ft) | 6 | 110 | 4100 | 100-200 |
