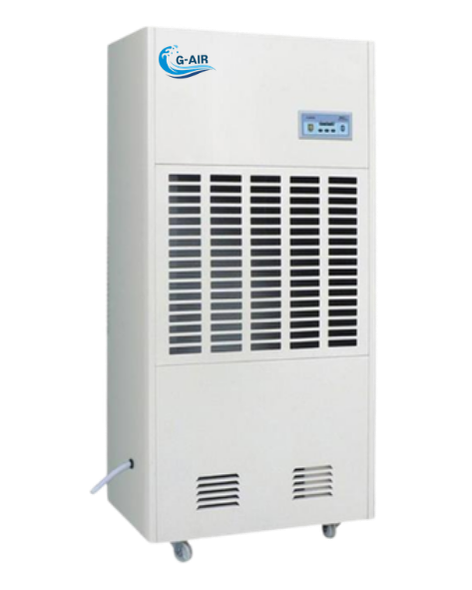

168L/Day Industrial
Dehumidifier
PRODUCT FEATURE
- CNC processed casing, rigid & durable
- Brand compressor CFC free refrigerant available
- Washable coarse air filter, easy to maintain
- Top air discharge, duct flange available
- Standard hose drain, pump available
- Smart automatic recover function
- Lack/wrong phase protection (3phase unit)
- Timer on/off, defrost time/temperature set function
- Class F fan motor. low/high air speed
- Compressor delay start protection, fan delay stop protection
Customized available
Duct flange, high temperature,
Explosion-proof, pump drain etc.
Durable Fan
Class F motor,
low/high speed
Auto restart function
Restart automatically
from sudden power outage
Adjustable defrost time & temperature
Slow icing problem & prolog lifetime
TECHNICAL SPECIFICATION
| Model | DF-7-ID |
| Rated Capacity (30°C, RH80%) | 168L/Day |
| Power Source | 220V/50Hz/3Ph |
| Rated Input Power | 2790w |
| Rated Input Current | 13A |
| Water Drain | Hose,φ16mm |
| Refrigerant | R22/R410a |
| Air Flow | 1800³m/h |
| E.S.P | >80Pa |
| Available Ambient Temp | 5-38°C |
| Weight | 122kg |
| Available Area(H=2.6m) | <170m² |
| Measurement(W*D*H) | 605*405*1610mm |
| Package Size(W*D*H) | 700*580*1650mm |
| Model | DF-7-ID | DF-7-ID |
| Rated Capacity (30°C, RH80%) | 168L/Day | 168L/Day |
| Power Source | 220V/50Hz/3Ph | 380V/50Hz/3Ph |
| Rated Input Power | 2790w | 2740w |
| Rated Input Current | 13A | 6.1A |
| Water Drain | Hose,φ16mm | Hose,φ16mm |
| Refrigerant | R22/R410a | R22/R410a |
| Air Flow | 1800³m/h | 1800³m/h |
| E.S.P | >80Pa | >80Pa |
| Available Ambient Temp | 5-38°C | 5-38°C |
| Weight | 122kg | 122kg |
| Available Area(H=2.6m) | <170m² | <170m² |
| Measurement(W*D*H) | 605*405*1610mm | |
| Package Size(W*D*H) | 700*580*1650mm | |

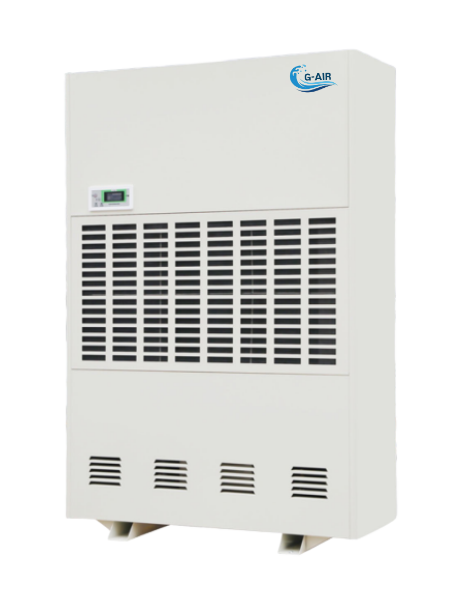

240L/Day Industrial
Dehumidifier
PRODUCT FEATURE
- CNC processed casing, rigid & durable
- Brand compressor CFC free refrigerant available
- Washable coarse air filter, easy to maintain
- Top air discharge, duct flange available
- Standard hose drain, pump available
- Smart automatic recover function
- Lack/wrong phase protection (3phase unit)
- Timer on/off, defrost time/temperature set function
- Class F fan motor. low/high air speed
- Compressor delay start protection, fan delay stop protection
Customized available
Duct flange, high temperature,
Explosion-proof, pump drain etc.
Durable Fan
Class F motor,
low/high speed
Auto restart function
Restart automatically
from sudden power outage
Adjustable defrost time & temperature
Slow icing problem & prolog lifetime
TECHNICAL SPECIFICATION
| Model | DF-10-ID |
| Rated Capacity (30°C, RH80%) | 240L/Day |
| Power Source | 380V/50Hz/3Ph |
| Rated Input Power | 4970w |
| Rated Input Current | 9.8A |
| Water Drain | Hose,φ16mm |
| Refrigerant | R22/R407a |
| Air Flow | 2400³m/h |
| E.S.P | >80Pa |
| Available Ambient Temp | 5-38°C |
| Weight | 140kg |
| Available Area(H=2.6m) | <250m² |
| Measurement(W*D*H) | 750*465*1690mm |
| Package Size(W*D*H) | 870*540*1760mm |

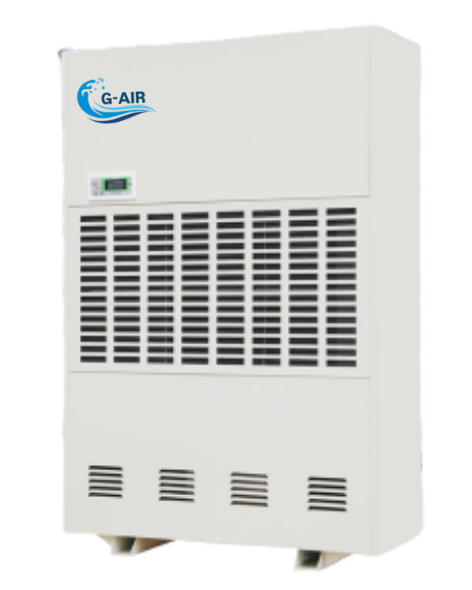

480L/Day Industrial
Dehumidifier
PRODUCT FEATURE
- CNC processed casing, rigid & durable
- Brand compressor CFC free refrigerant available
- Washable coarse air filter, easy to maintain
- Top air discharge, duct flange available
- Standard hose drain, pump available
- Smart automatic recover function
- Lack/wrong phase protection (3phase unit)
- Timer on/off, defrost time/temperature set function
- Class F fan motor. low/high air speed
- Compressor delay start protection, fan delay stop protection
Customized available
Duct flange, high temperature,
Explosion-proof, pump drain etc.
Durable Fan
Class F motor,
low/high speed
Auto restart function
Restart automatically
from sudden power outage
Adjustable defrost time & temperature
Slow icing problem & prolog lifetime
TECHNICAL SPECIFICATION
| Model | DF-480-ID |
| Rated Capacity (30°C, RH80%) | 480L/Day |
| Power Source | 380V/50Hz/3Ph |
| Rated Input Power | 9940w |
| Rated Input Current | 19.5A |
| Water Drain | Hose,φ16mm |
| Refrigerant | R22/R407a |
| Air Flow | 4800³m/h |
| E.S.P | >80Pa |
| Available Ambient Temp | 5-38°C |
| Weight | 230kg |
| Available Area(H=2.6m) | <500m² |
| Measurement(W*D*H) | 1195*545*1750mm |
| Package Size(W*D*H) | 1300*590*1880mm |
